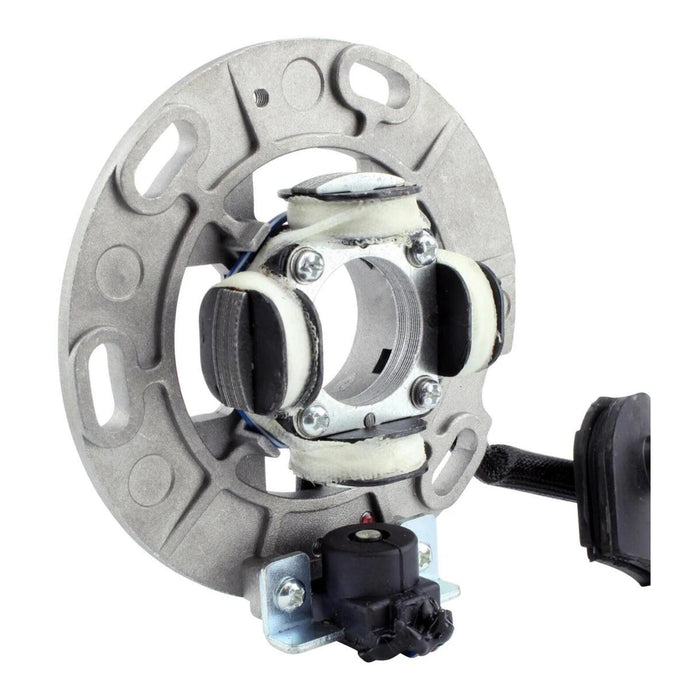

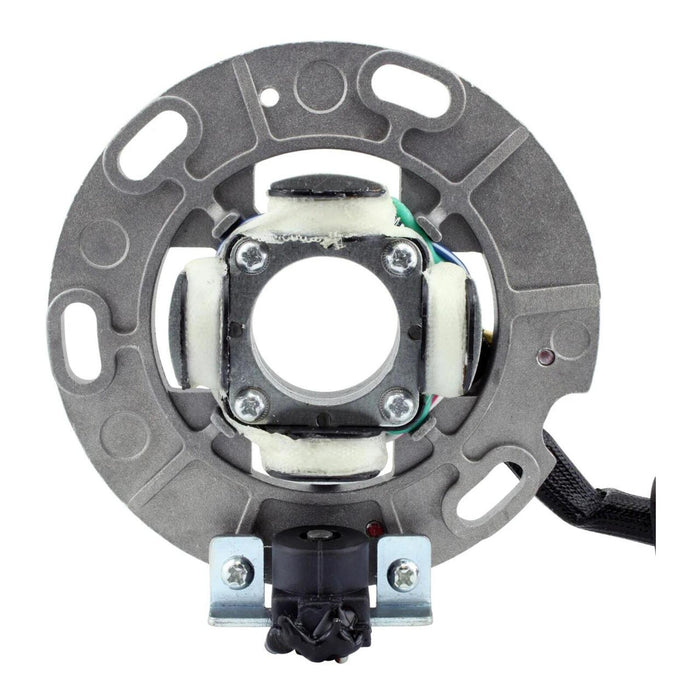

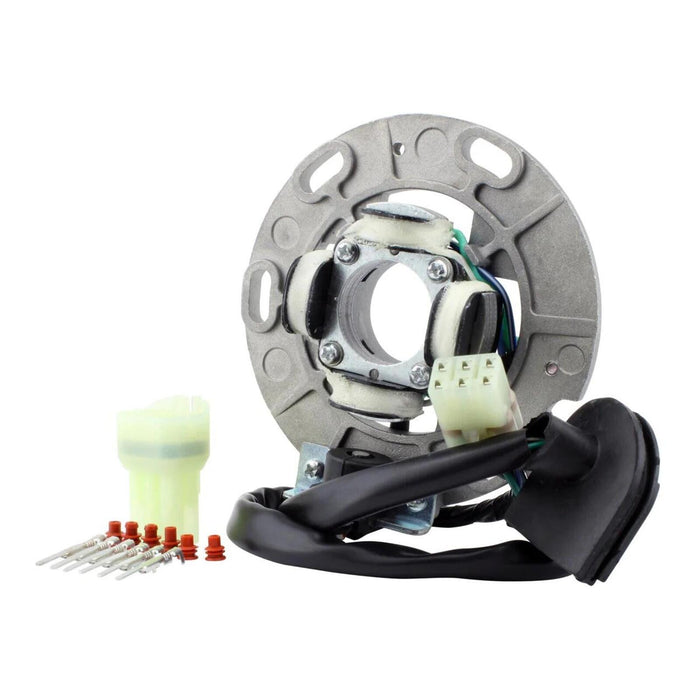

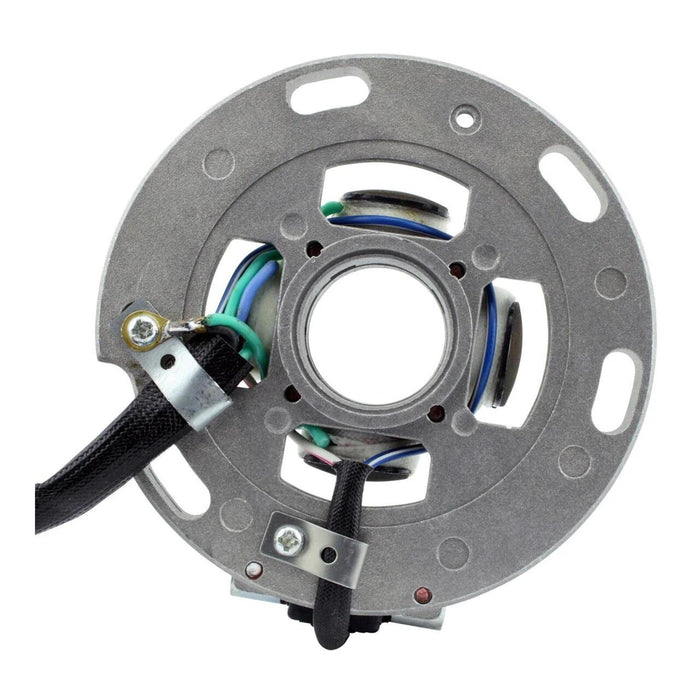

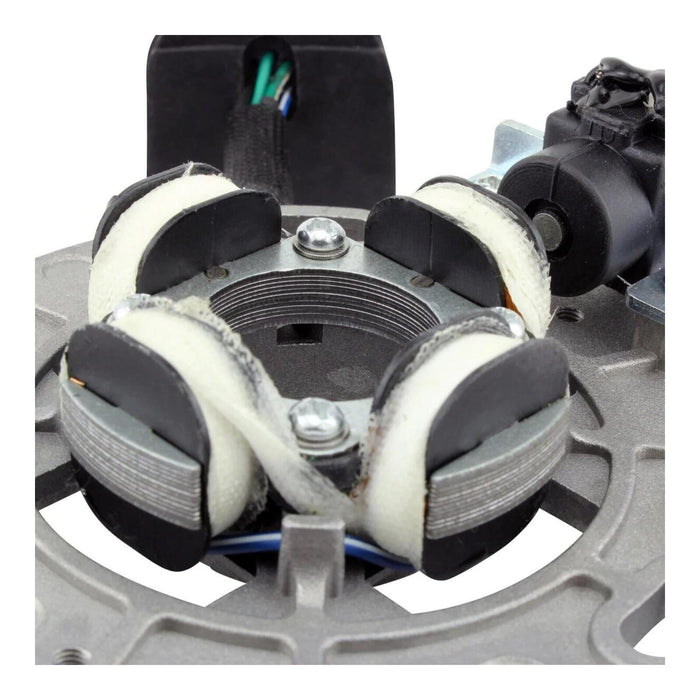

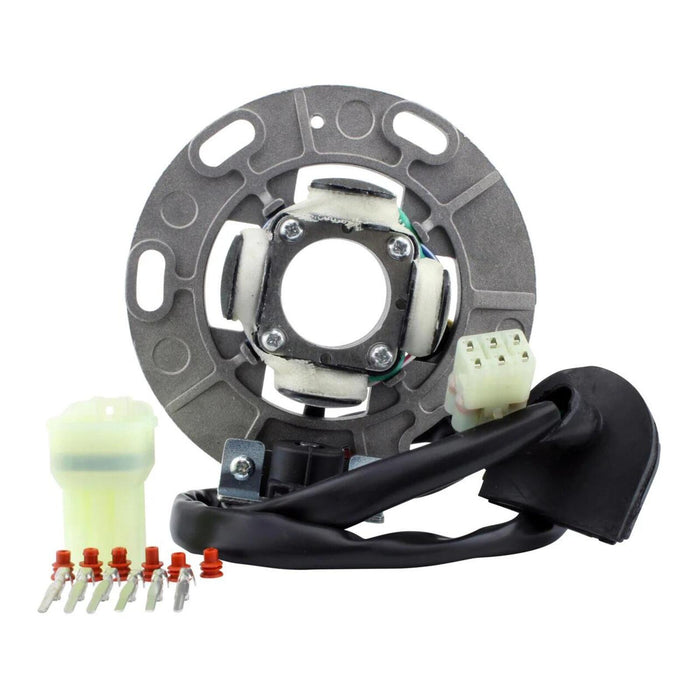

Stator for Yamaha YZ250 '06-'25 / YZ250X '16-'25

Stator for Yamaha YZ250 '06-'25 / YZ250X '16-'25

by RMSTATOR
SKU RMS010102117
$355.99 - $355.99
$355.99
$355.99 - $355.99
$355.99

In-store Availability

Please note most products shown in stock online are not available in-store; please contact us to confirm in-store availability.

Availability:
Only 2 left!

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

  • Direct replacement to your original unit.
  • Plug-and-play, direct fit, easy installation.
  • Highest grade of lamination materials.
  • Highest grade of copper winding, resistant to 200 degrees Celsius.

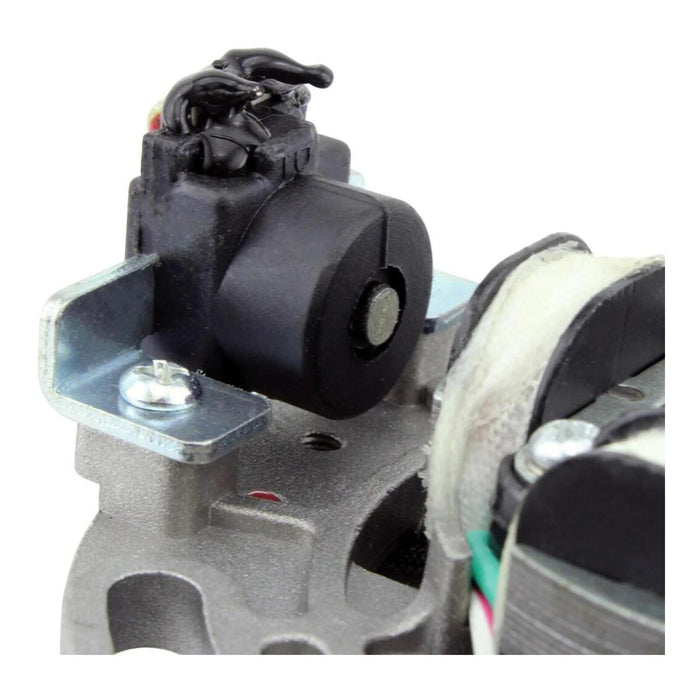

  • Pick up pulsar coil included.

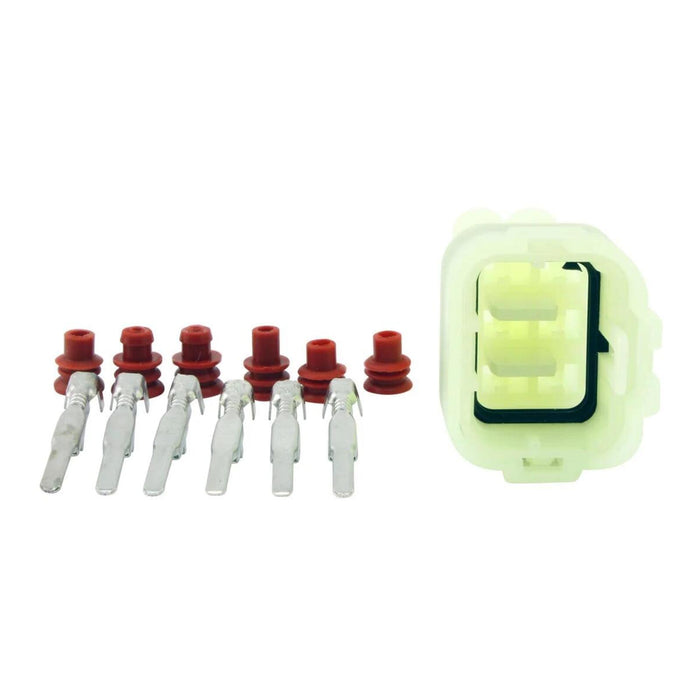

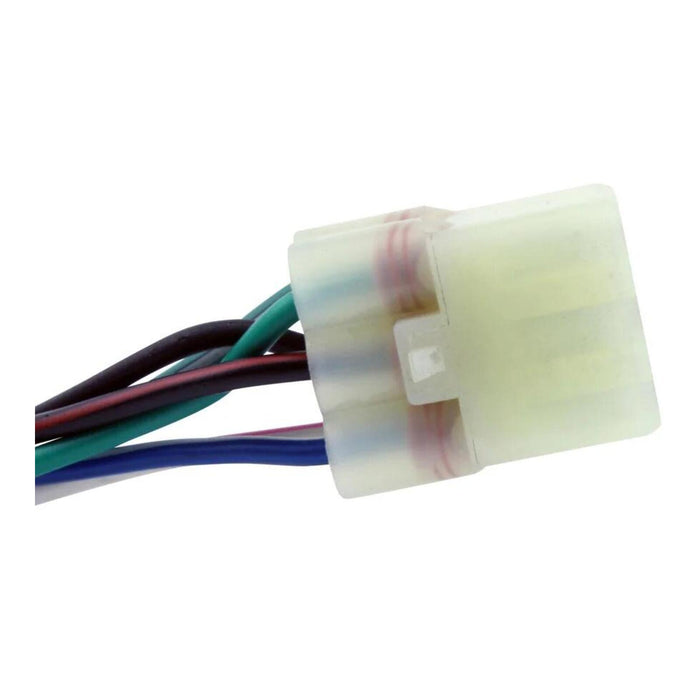

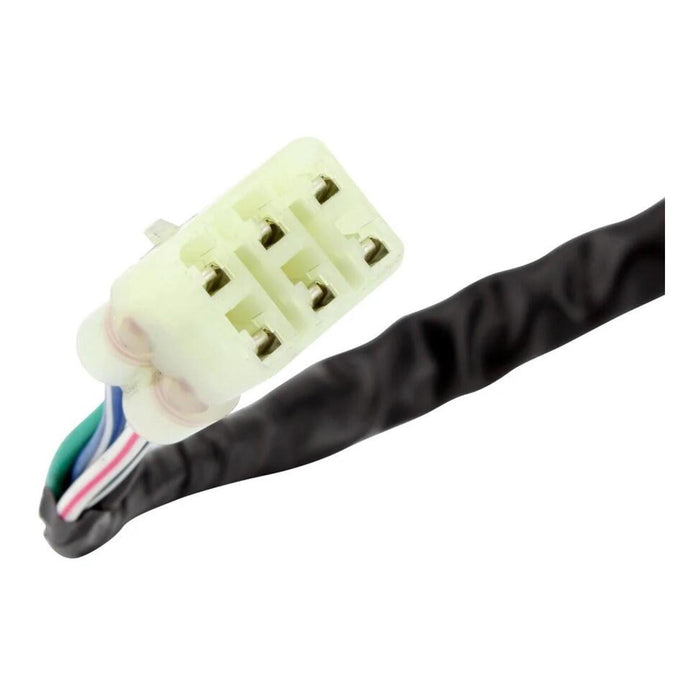

  • Connectors included.

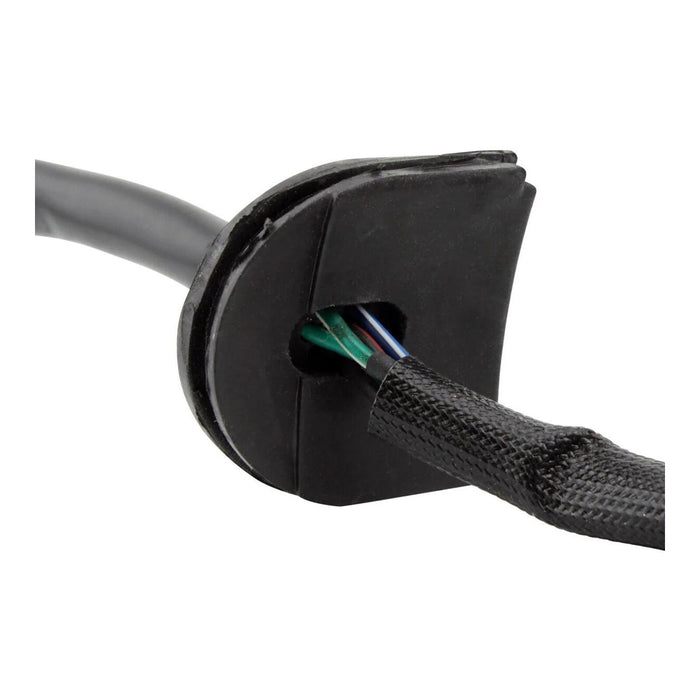

  • Rubber grommet included.

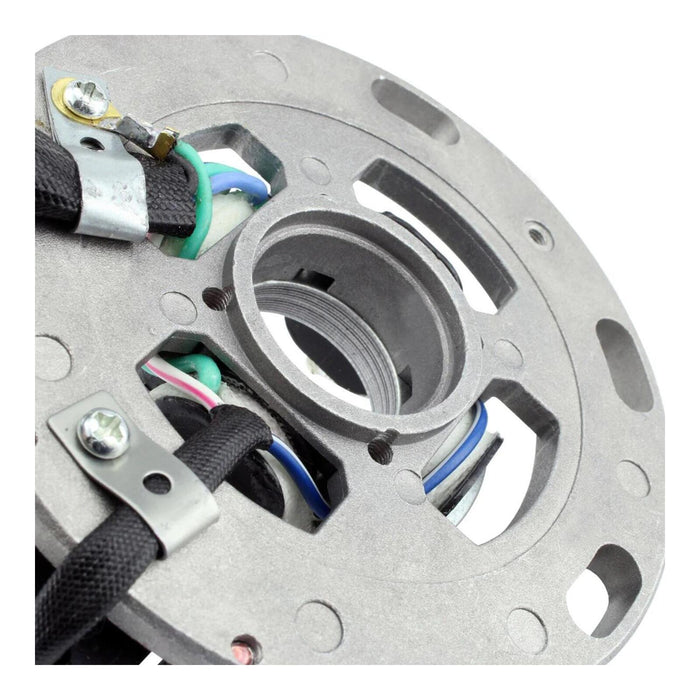

  • Back Plate included.
  • All products shipped are tested.

Technical Data

Dimensions:

  • Interior diameter: 28mm
  • Exterior diameter: 59.30mm
  • Thickness: 33mm
  • Length of wires stator to grommet: 32mm
  • Length of wires grommet to plug: 320mm

Other specifications :

  • Number of wires: 6
  • Number of plugs: 1
  • Number of pins: 6
  • Number of poles: 4
  • Pickup: White/Blue to White/Red = 285 ohms +-20%
  • Source #1 : Green/White to Green = 54 ohms +-20%
  • Source #2 : Black/Red to Black = 875 ohms +-20%
