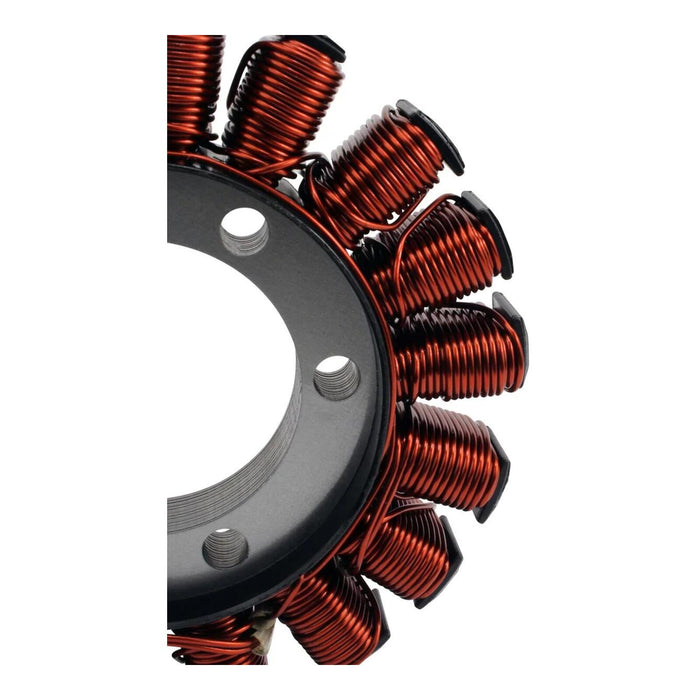

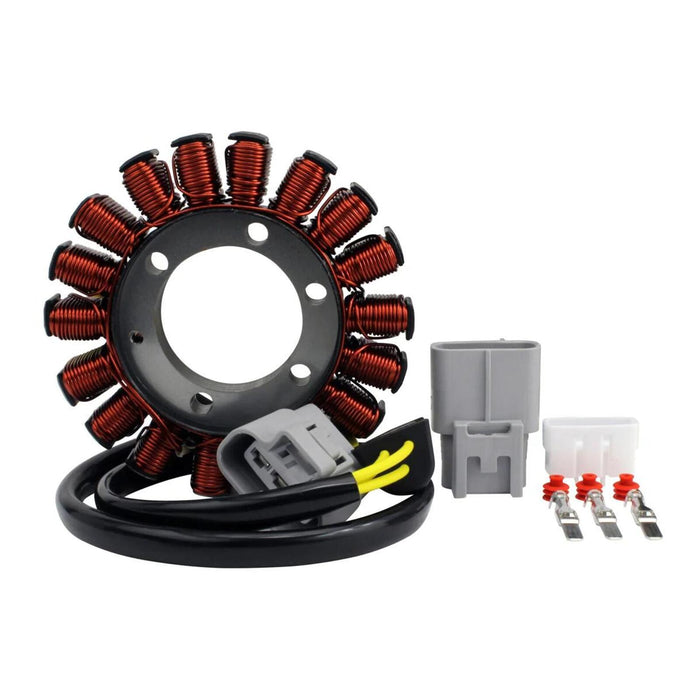

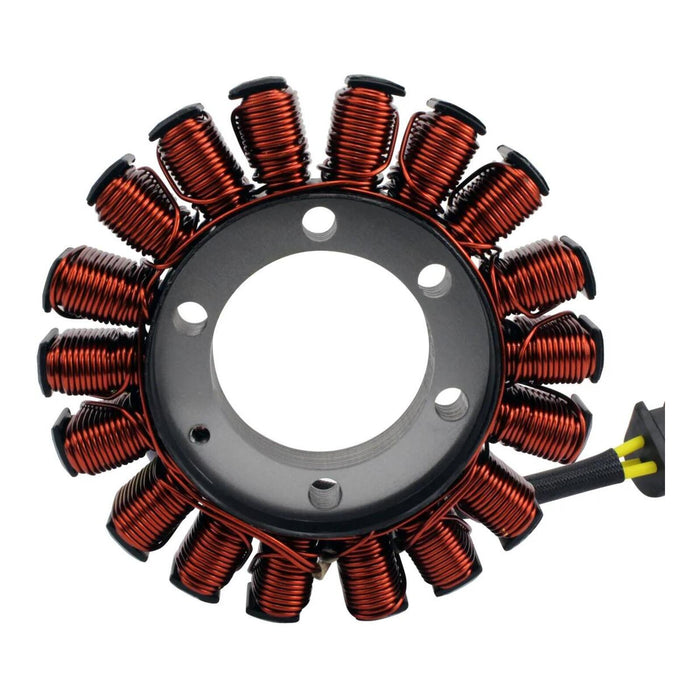

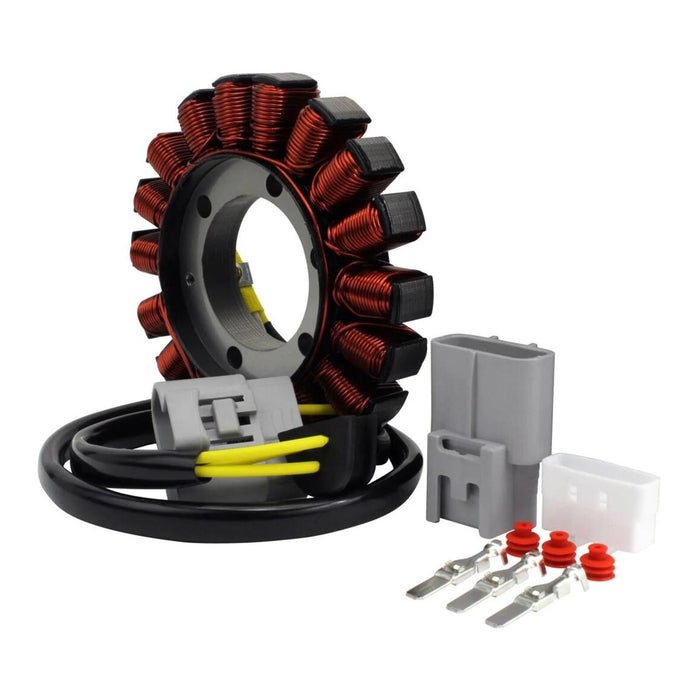

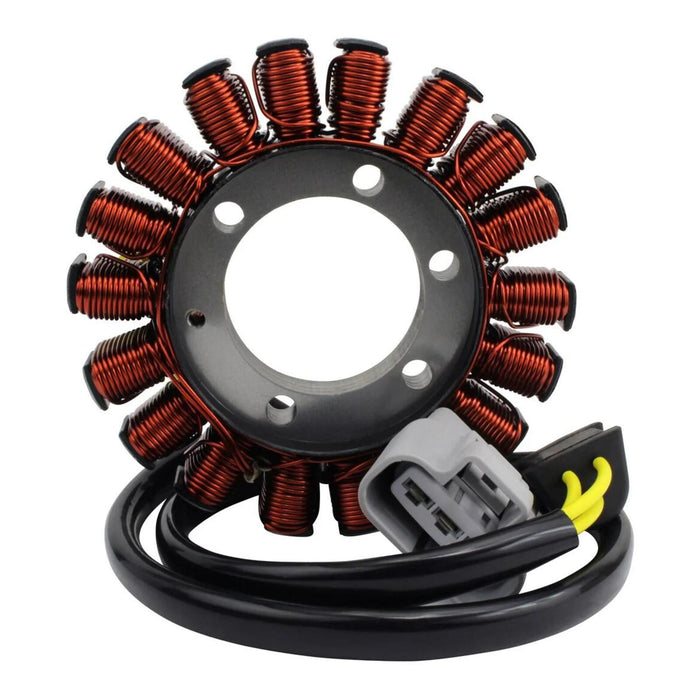

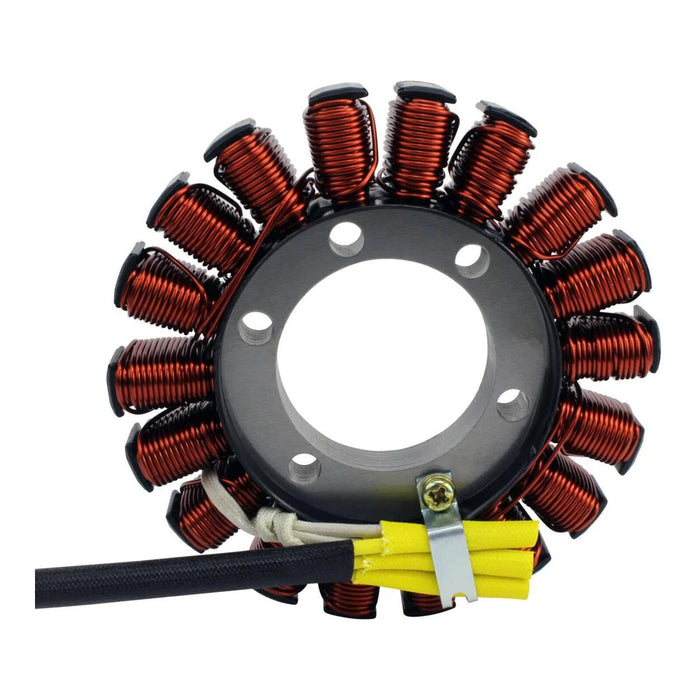

Improved Stator KTM Adventure/R & Super Duke Model
by RMSTATOR
SKU RMS010109002
Original price
$432.99
-
Original price
$432.99
Original price
$432.99
$432.99
-
$432.99
Current price
$432.99
In-store Availability
Please note most products shown in stock online are not available in-store; please contact us to confirm in-store availability.
Availability:
Only 2 left!
Brand-new aftermarket improved stator.
Features:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.

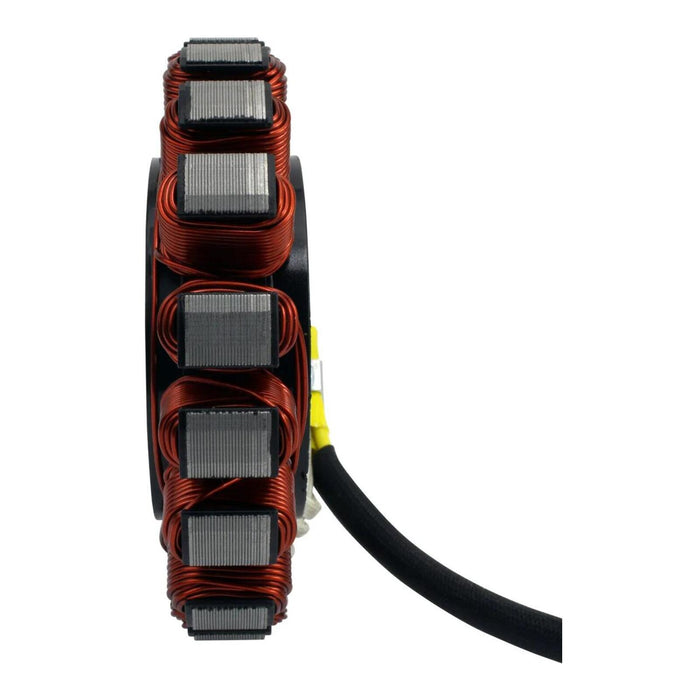

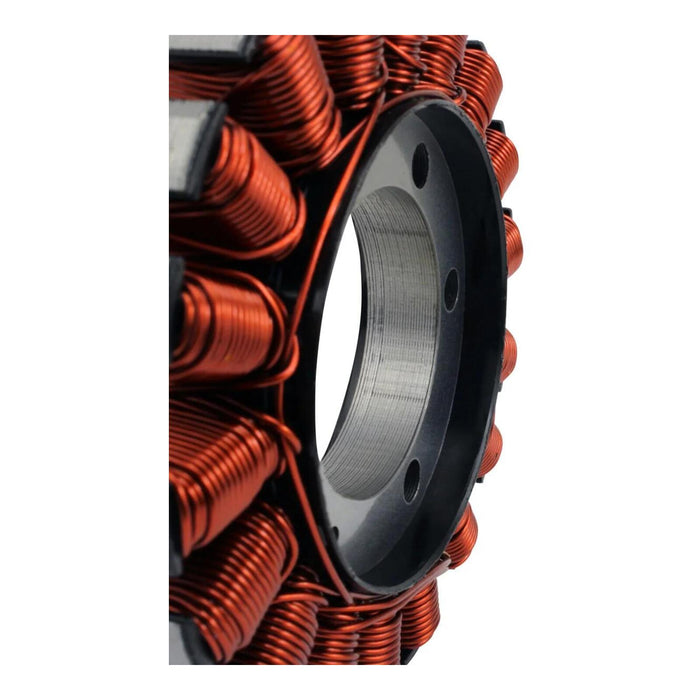

- Highest grade of thin silicone steel laminations.
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- High temperature wires.

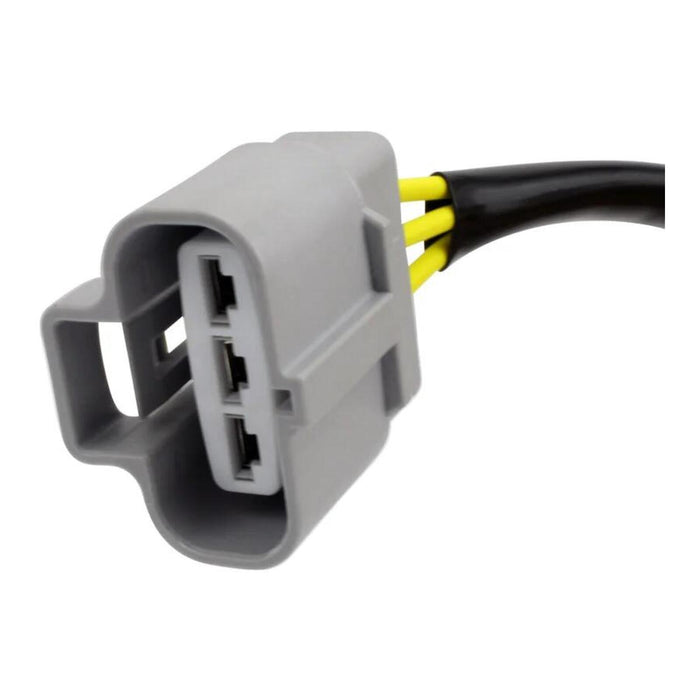

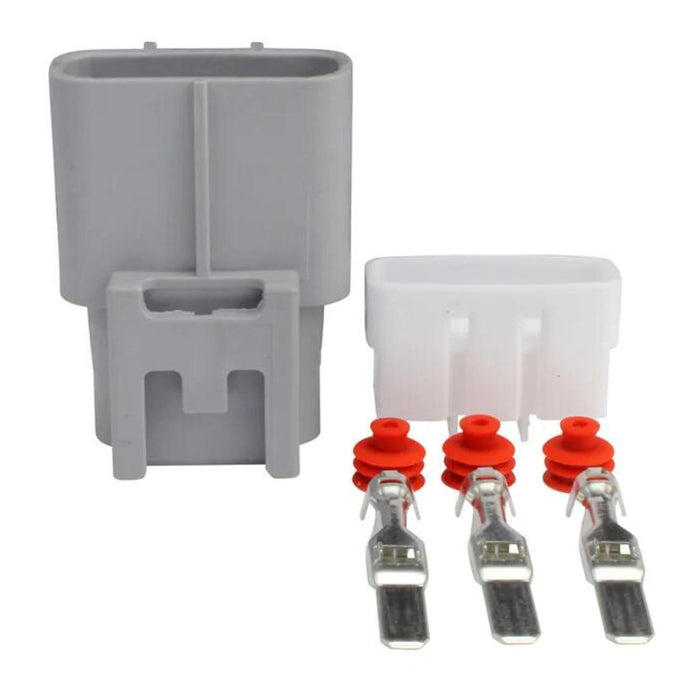

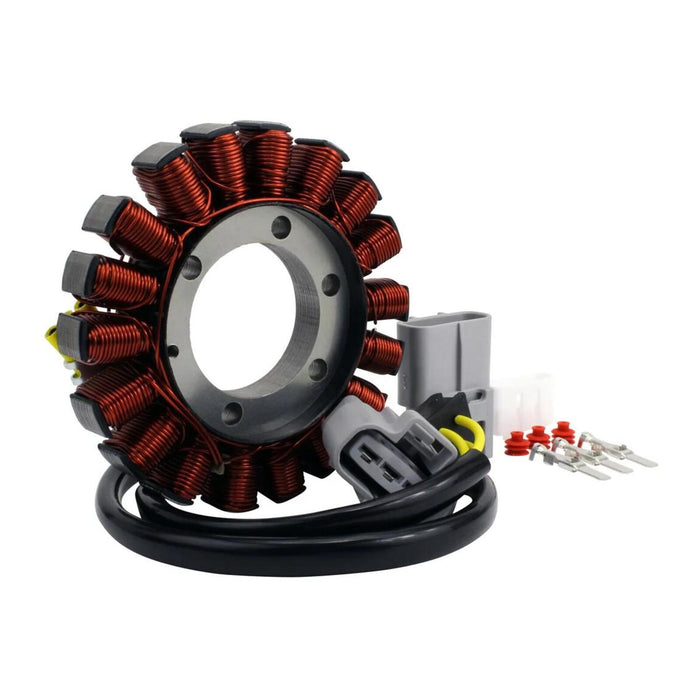

- Connectors included.

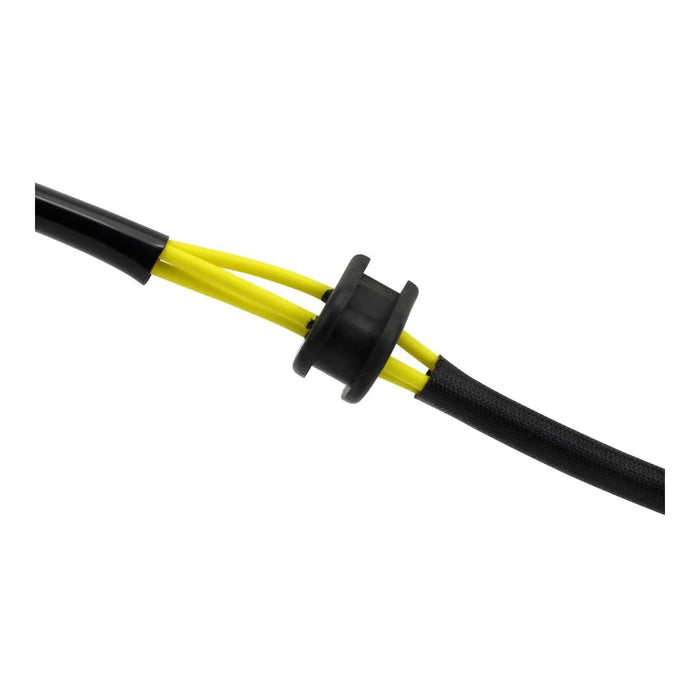

- Rubber grommet included.
- All products shipped are tested.
Specifications:
Di mensions
- Interior diameter: 42 mm
- Exterior diameter: 107 mm
- Thickness: 12 mm
- Length of wires stator to grommet: 110 mm
- Length of wires grommet to plug: 600 mm
Other specifications
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Number of poles: 18
Wire-to-wire resistance
- Alternator: Yellow to Yellow = 0.6 ohms +/-20%
- Alternator: Yellow to ground = O.L
